Engineering Logistics Transportation
The engineering transportation series is mainly used in construction sites, building materials transportation and other medium and heavy load use scenarios. We can provide a variety of cargo box sizes, cab types and power specifications to meet the needs of different user groups.
Do you need any help?
-

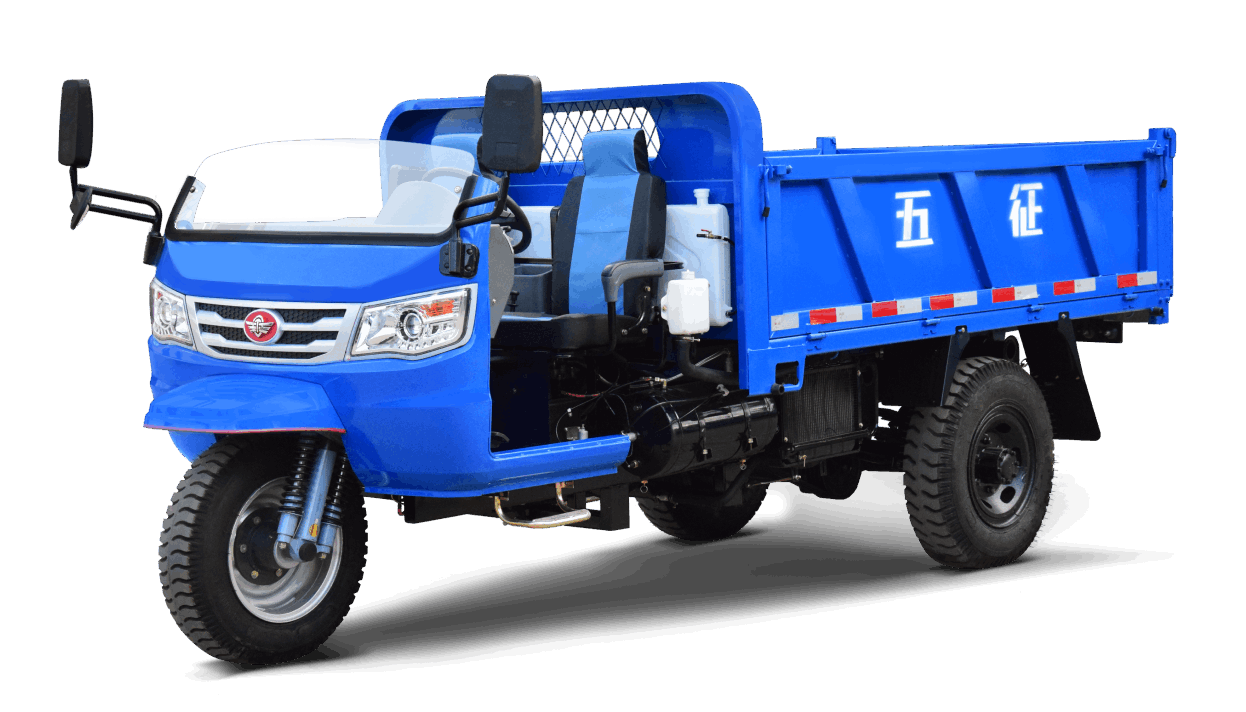

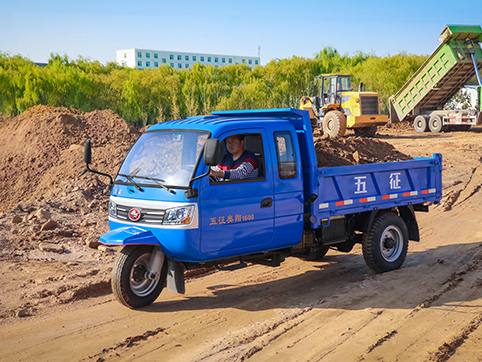

D1500
With a high-strength steel frame construction, our vehicle balances lightweight design and exceptional load-bearing capacity for agility and durability.
-
Diesel engineWide Visibility：
360° all-around view from the driver's position.
Strong Load Capacity：
510MPa high-strength steel frame. eight/ten.speed cast rear axle, full-steel radial tires provide reliable heavy loads.
Strong passability on rough roads:
Ground clearance greater than 280mm for tuned off-road capability.

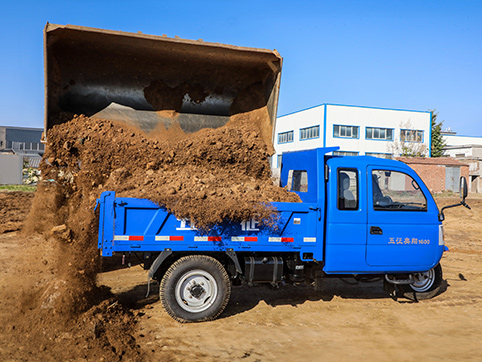

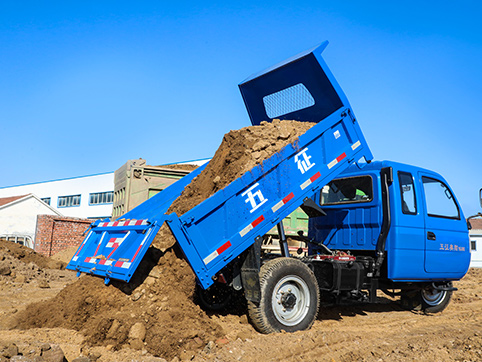

Efficient Loading and Unloading：
Equipped with dumping function, with a tilt angle greater than 45°, facilitating easier cargo unloading.
-

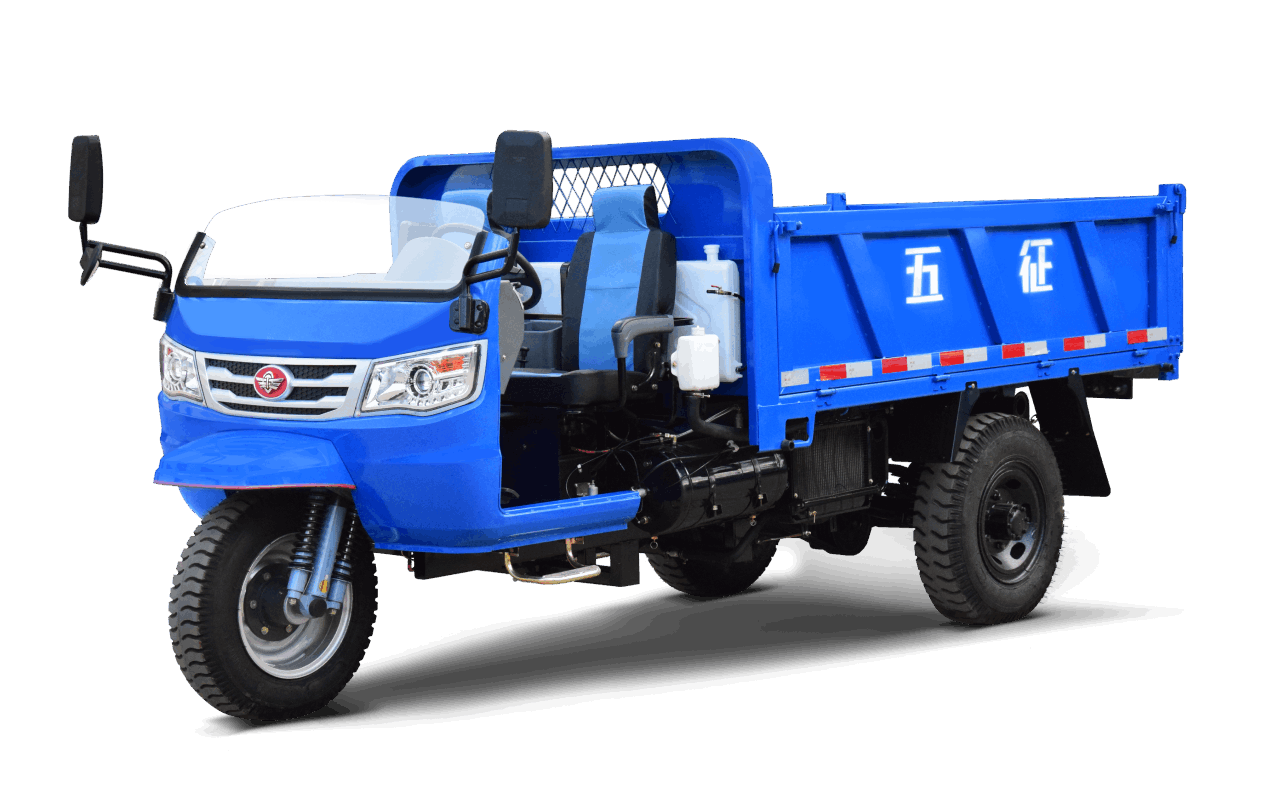

D1500
Efficient transportation solutions for users worldwide
Use scenarios
Technical specification
-
D1500
-
Engine model
-
External contour dimensions
-
Wheeltrack
-
Wheelbase
-
Front and rear tires
-
Frame form
-
Steering form
-
Shock absorber model
-
Box dimensions
-
Clutch
-
Brake form
-
Dumping method
-
Other configurations
-
-
24HP
-
4208×1540×1745
-
1310
-
2788
-
Front 60016/65016, Rear 75016
-
170 high-strength steel
-
Worm gear/recirculating ball/electric power assistance
-
5658/6058 triple shocks
-
2500×1540×450
-
Mechanical clutch
-
Oil Brake
-
self-unloading
-
simple body, iron sunshade, external cooling, electromagnetic drip
-
